12W LED

MANTA RAY MR7

Single Color / RGB

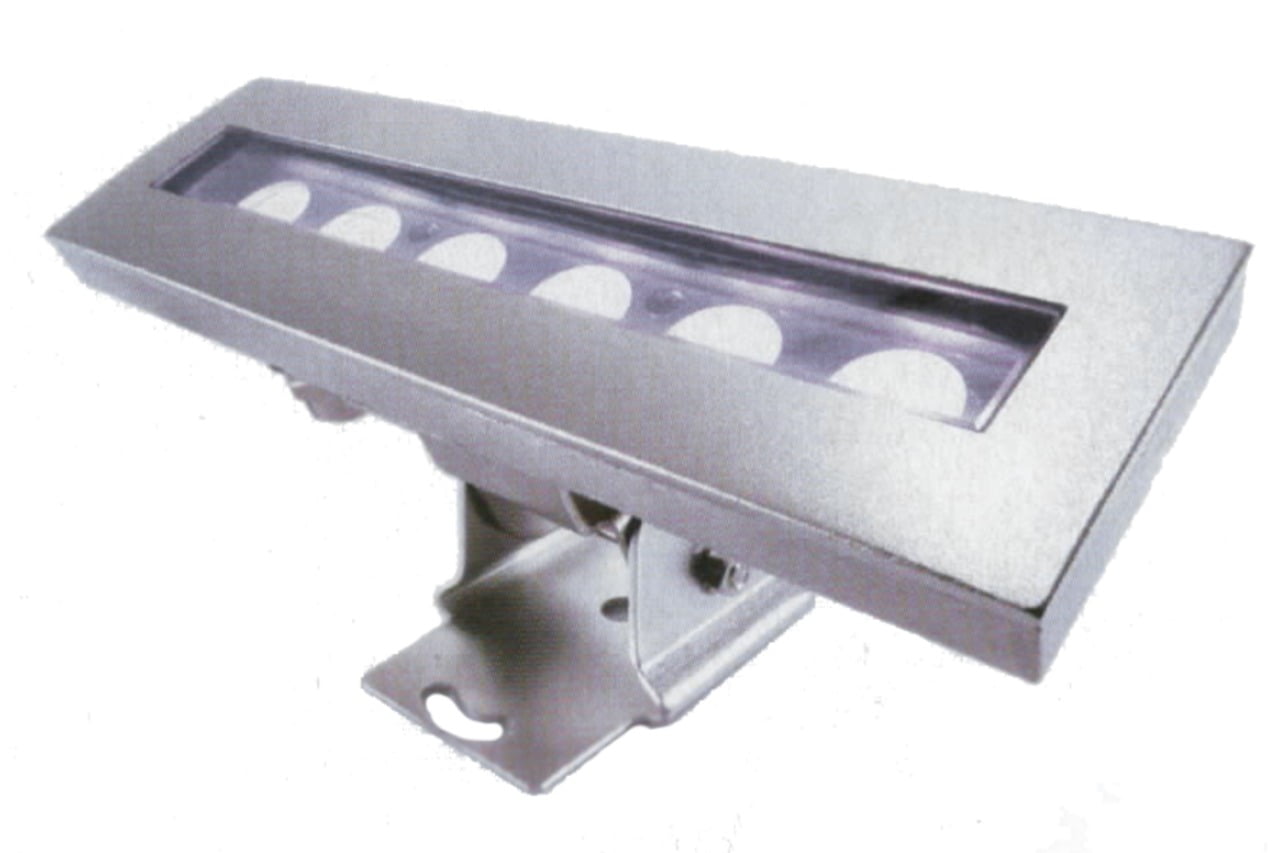

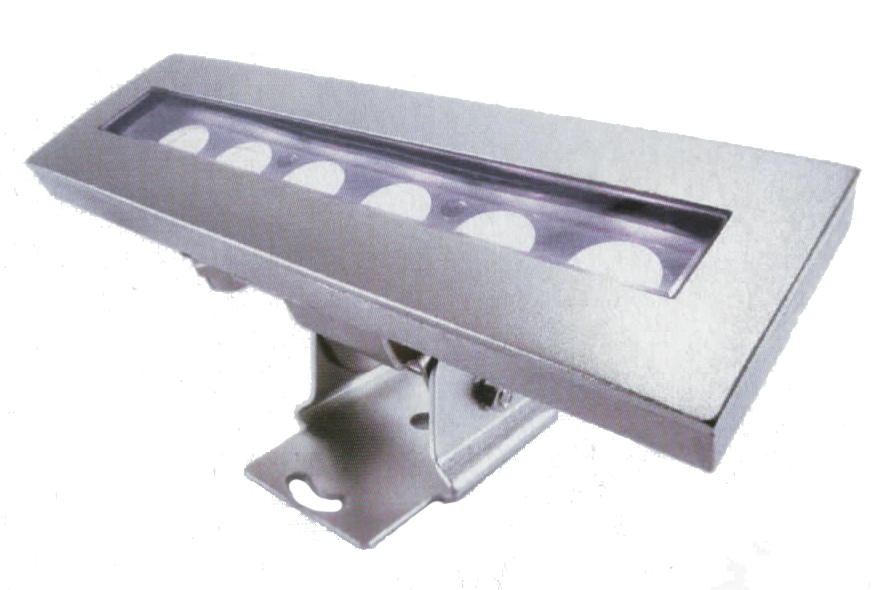

The MANTA RAY MR7 underwater fixtures is a linear articulating
LED fixture. Its design allows for a wider beam spread for jobs
where more of a flood type fixture is required. The mounting
bracket allows for easy angled adjustments.

Specifications

HOUSING:

Stainless steel 316#

CABLE GLAND:

IP68 PG-11 copper/nickel

WATERPROOF SEAL:

EPDM Gasket

GLASS:

Step-tempered T=5mm

ENVIRONMENT:

Up to 1m depth

INPUT VOLTAGE:

12VAC, 24VDC

IP RATING:

IP68

MR7 PRODUCT SHEET
